Interlock Kit K-6010

$149.95

717 in stock

You need extra 150 Points for getting this product for free

PATENT PENDING PRODUCT

Have a question or don’t see a kit for your panel? We make custom Interlock Kits for any panel or solar scenario – call (804) 531-3359 or Contact Us!

This Kit performs like a manual transfer switch for EATON / Cutler Hammer electrical panels with the following features:

  • Space between breaker columns: 1/2"
  • Gap between main breaker and columns below, is: 1 1/2" approximately
  • 150-200 amp main breaker
  • Main breaker toggle action: horizontal (left-right) throw direction ON & OFF
  • Main breaker sits offset from the center: 1/2" to the right
  • Compatible with CH breakers

Recommendations

  • Install a two pole generator breaker at the top of the right column: spaces 2 & 4
  • Page four of the installation instructions includes a list of contents included in Kit K-6010

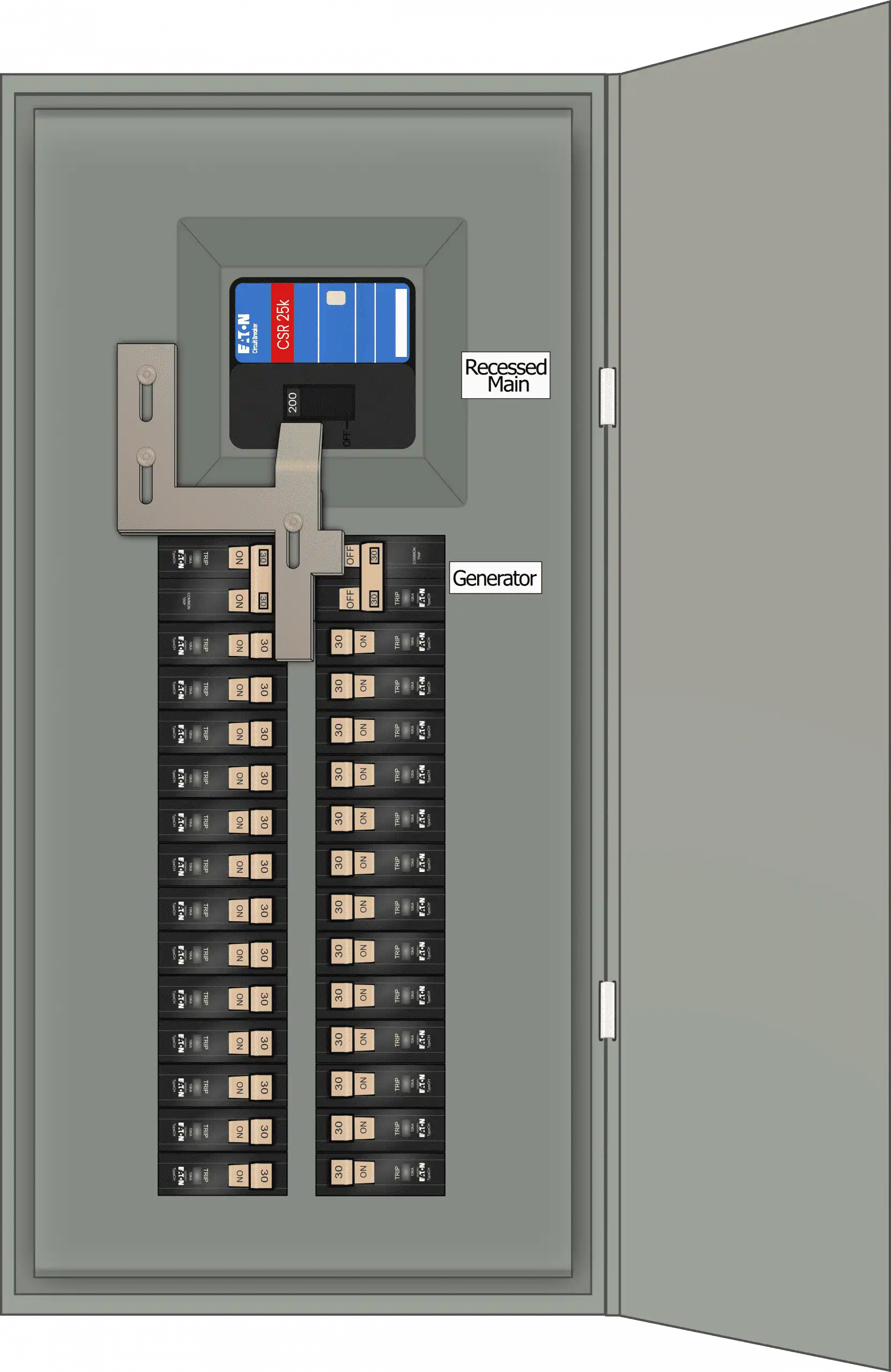

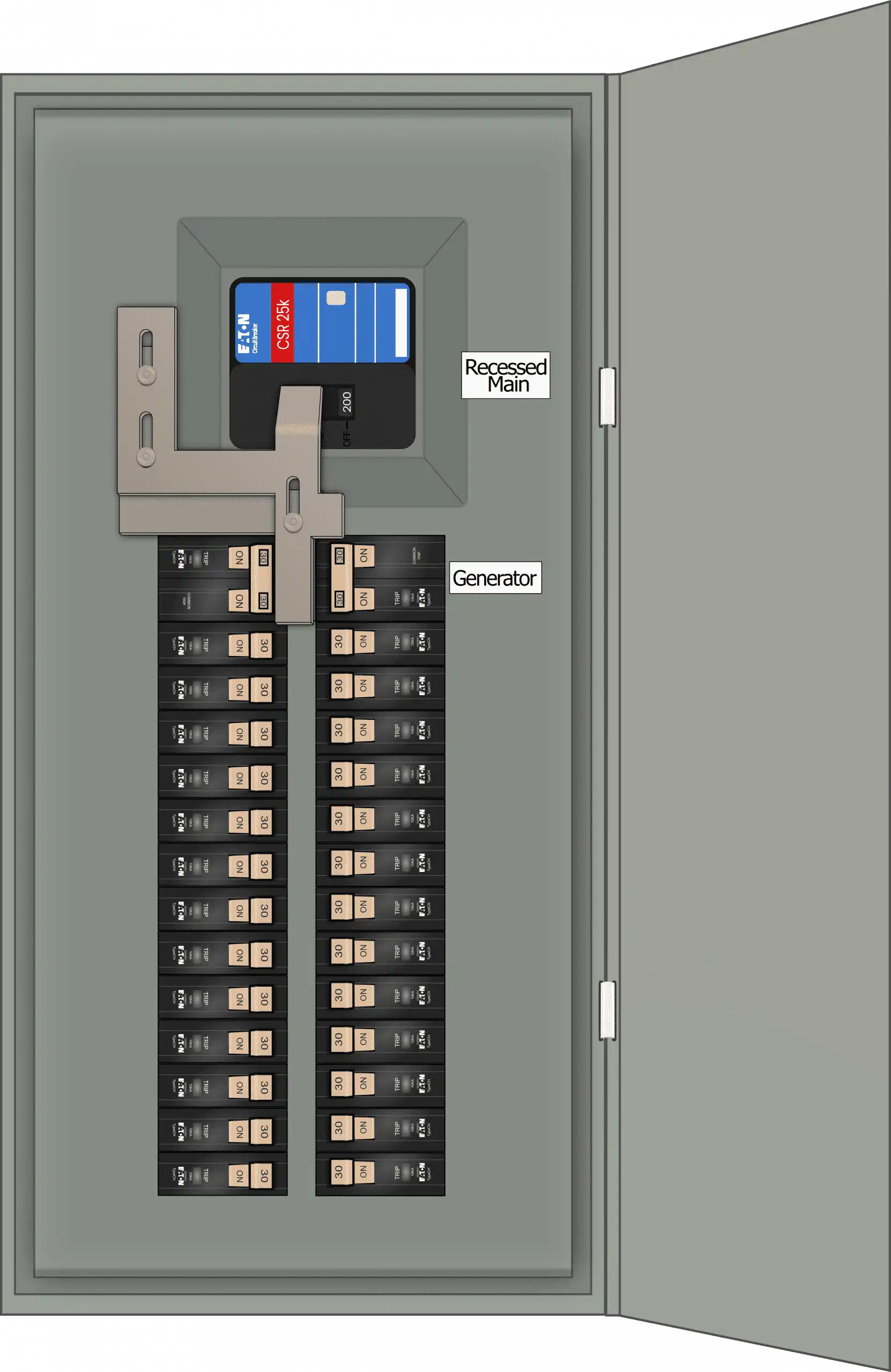

The main breaker will be slightly recessed into the panel cover with this EATON / Cutler Hammer panel configuration.

Kit Installation Instructions

Additional information

Weight 1 lbs
Catalog #:

CH24B150E, CH24B150R, CH24B200R, CH32B150R, CH32B200JP, CH32B200V, CH32BPN200J, CH42B200R, CH8N200RF, CMB1212B200BTS, CMB1212L200BTS, CMB1212L200BTSD, CMB1212P200BTSD, CMB2436B200BTS, CMB1212P200BTS ,CMB1212L200BTSD, CMB1212P200BTSD
CMB2436B200BTS- other compatible catalog #'s may not be listed here yet. Use the details listed in "Description" to help match your kit!
